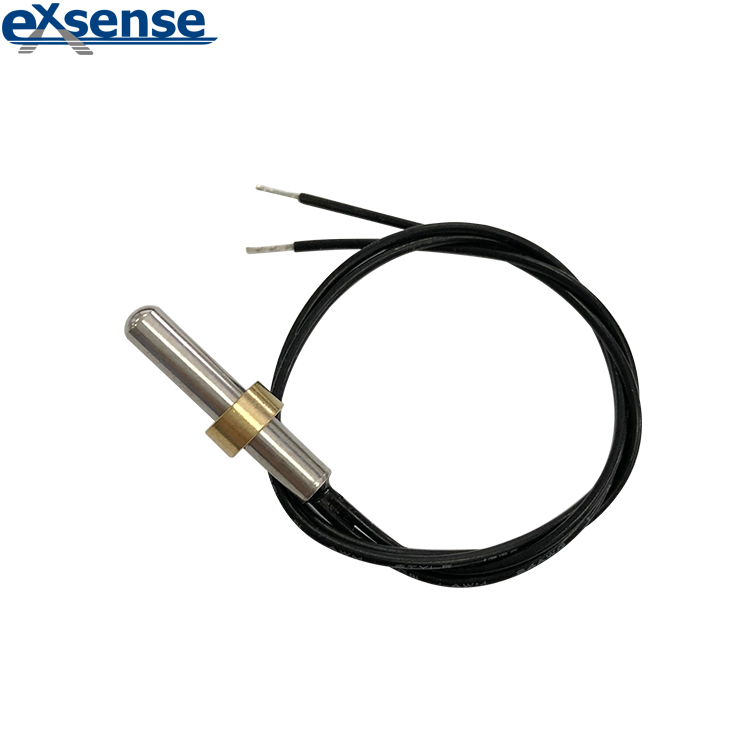

EXSENSE Sensor Technology Co.,Ltd is a professional research and development, production NTC temperature sensor, encapsulation thermistor NTC thermistor, glass manufacturers, TS series injection molding temperature sensor is high sensitivity, high reliable NTC thermistor chip and wire welded together, encapsulated with insulation, thermal conductivity, waterproof material into required shape, easy to install and remote measurement and control temperature.Can be used according to the installation conditions of packaging, accept custom products.
|
Product Model
|
TS303F0C3450GE-PL155B-S22TB
|
|
Resistance Specification
|
R0=30KΩ±1% B(0/100)=3450K±1%
|
|
Response Time
|
≤3S
|
|
Temperature Range
|
-40℃～200℃
|
|
Housing size
|
4.5*3*15 PPS black
|
|
Wire material
|
UL1332#22AWG
|
|
Cable length
|
170mm
|
|
Dissipation factor
|
Ta=25±0.5℃ about 2.6mW/℃
|
|
If all the parameters are not suitable for you. We can customize
|
|
1. Motorcycle oil temperature monitoring
2. Battery pack
3. Vehicle inverter
4. Speed changer
5. Oil cooler
|
|
2.252KΩ
EQ
|
5KΩ
IM
|
5KΩ
IM
|
10KΩ
IQ
|
10KΩ
EQ
|
10KΩ
EQ
|
50KΩ
EQ
|
100KΩ
GI
|
100KΩ
GI
|
|
B 25/50
|
3936A
|
3270A
|
3950A
|
3383A
|
3913A
|
3950A
|
3950A
|
3950A
|
4100AI
|
|
B 25/85
|
3950B
|
3418B
|
3981B
|
3435B
|
3977B
|
4017B
|
4050B
|
3997B
|
4149BI
|
|
-40
|
76.757
|
89.527
|
166.488
|
205.516
|
284.362
|
299.347
|
1668.539
|
3263.032
|
3724.780
|
|
-35
|
55.198
|
67.552
|
120.216
|
154.902
|
207.765
|
218.546
|
1208.617
|
2365.035
|
2666.911
|
|
-30
|
40.169
|
51.596
|
87.803
|
117.957
|
153.558
|
161.297
|
884.941
|
1733.109
|
1931.390
|
|
-25
|
29.562
|
39.864
|
64.823
|
90.693
|
114.728
|
120.266
|
654.531
|
1283.211
|
1413.792
|
|
-20
|
21.985
|
31.133
|
48.343
|
70.366
|
86.594
|
90.537
|
488.738
|
959.375
|
1045.392
|
|
-15
|
16.504
|
24.894
|
36.348
|
54.994
|
66.328
|
69.111
|
367.390
|
723.658
|
780.142
|
|
-10
|
12.508
|
20.020
|
27.587
|
43.343
|
51.191
|
53.134
|
278.692
|
550.628
|
587.479
|
|
-5
|
9.565
|
16.189
|
21.123
|
34.433
|
39.793
|
41.128
|
213.231
|
422.427
|
446.184
|
|
0
|
7.377
|
13.159
|
16.310
|
27.561
|
31.143
|
32.038
|
164.474
|
326.601
|
341.615
|
|
5
|
5.730
|
10.724
|
12.688
|
22.220
|
24.537
|
25.056
|
127.638
|
253.987
|
263.138
|
|
10
|
4.487
|
8.791
|
9.947
|
18.034
|
19.446
|
19.729
|
99.859
|
199.056
|
204.329
|
|
15
|
3.540
|
7.246
|
7.855
|
14.729
|
15.498
|
15.636
|
78.728
|
157.158
|
159.879
|
|
20
|
2.814
|
6.004
|
6.247
|
12.102
|
12.418
|
12.468
|
62.524
|
124.948
|
126.009
|
|
25
|
2.252
|
5.000
|
5.000
|
10.000
|
10.000
|
10.000
|
50.000
|
100.000
|
100.000
|
|
30
|
1.814
|
4.183
|
4.027
|
8.308
|
8.092
|
8.065
|
40.249
|
80.540
|
79.880
|
|
35
|
1.471
|
3.516
|
3.263
|
6.938
|
6.577
|
6.539
|
32.603
|
65.256
|
64.207
|
|
40
|
1.199
|
2.968
|
2.659
|
5.822
|
5.370
|
5.328
|
26.568
|
53.176
|
51.916
|
|
45
|
0.984
|
2.515
|
2.179
|
4.909
|
4.402
|
4.363
|
21.773
|
43.568
|
42.215
|
|
50
|
0.811
|
2.140
|
1.794
|
4.157
|
3.623
|
3.588
|
17.941
|
35.882
|
34.512
|
|
55
|
0.673
|
1.822
|
1.487
|
3.537
|
3.004
|
2.969
|
14.827
|
29.724
|
28.386
|
|
60
|
0.562
|
1.555
|
1.239
|
3.021
|
2.502
|
2.469
|
12.306
|
24.746
|
23.468
|
|
65
|
0.471
|
1.331
|
1.037
|
2.591
|
2.093
|
2.062
|
10.256
|
20.700
|
19.498
|
|
70
|
0.397
|
1.141
|
0.873
|
2.231
|
1.759
|
1.729
|
8.581
|
17.395
|
16.277
|
|
75
|
0.336
|
0.981
|
0.738
|
1.928
|
1.484
|
1.456
|
7.206
|
14.681
|
13.649
|
|
80
|
0.286
|
0.845
|
0.626
|
1.671
|
1.257
|
1.231
|
6.074
|
12.442
|
11.496
|
|
85
|
0.245
|
0.733
|
0.534
|
1.451
|
1.070
|
1.047
|
5.139
|
10.582
|
9.716
|
|
90
|
0.210
|
0.637
|
0.457
|
1.264
|
0.915
|
0.893
|
4.362
|
9.033
|
8.245
|
|
95
|
0.181
|
0.555
|
0.393
|
1.104
|
0.785
|
0.765
|
3.715
|
7.739
|
7.022
|
|
100
|
0.157
|
0.484
|
0.339
|
0.967
|
0.676
|
0.658
|
3.174
|
6.653
|
6.002
|
|
105
|
0.136
|
0.424
|
0.294
|
0.849
|
0.584
|
0.568
|
2.720
|
5.738
|
5.148
|
|
110
|
0.119
|
0.372
|
0.255
|
0.747
|
0.507
|
0.491
|
2.337
|
4.965
|
4.430
|
|
115
|
0.104
|
0.327
|
0.223
|
0.659
|
0.441
|
0.427
|
2.014
|
4.310
|
3.825
|
|
120
|
0.091
|
0.288
|
0.195
|
0.583
|
0.384
|
0.372
|
1.740
|
3.752
|
3.312
|
|
125
|
0.080
|
0.254
|
0.171
|
0.517
|
0.336
|
0.325
|
1.507
|
3.275
|
2.877
|
|
130
|
0.071
|
0.225
|
0.151
|
0.459
|
0.295
|
0.284
|
1.308
|
2.867
|
2.506
|
|
135
|
0.063
|
0.199
|
0.133
|
0.409
|
0.260
|
0.250
|
1.138
|
2.517
|
2.188
|
|
140
|
0.056
|
0.176
|
0.118
|
0.365
|
0.229
|
0.220
|
0.993
|
2.215
|
1.916
|
|
145
|
0.050
|
0.157
|
0.104
|
0.326
|
0.202
|
0.194
|
0.868
|
1.953
|
1.682
|
|
150
|
0.044
|
0.140
|
0.093
|
0.292
|
0.179
|
0.172
|
0.760
|
1.727
|
1.480
|
