EXSENSE Sensor Technology Co.,Ltd is a professional research and development, production NTC temperature sensor,
encapsulation thermistor NTC thermistor, glass manufacturers, smart home series aluminum shell temperature
sensor is high sensitivity, high reliable NTC thermistor chips and black PVC wire welded together, encapsulated
with insulation, thermal conductivity, waterproof material into required shape, easy to install and remote
measurement and control temperature.Can be used according to the installation conditions of packaging, accept
customized parameters and sizes.

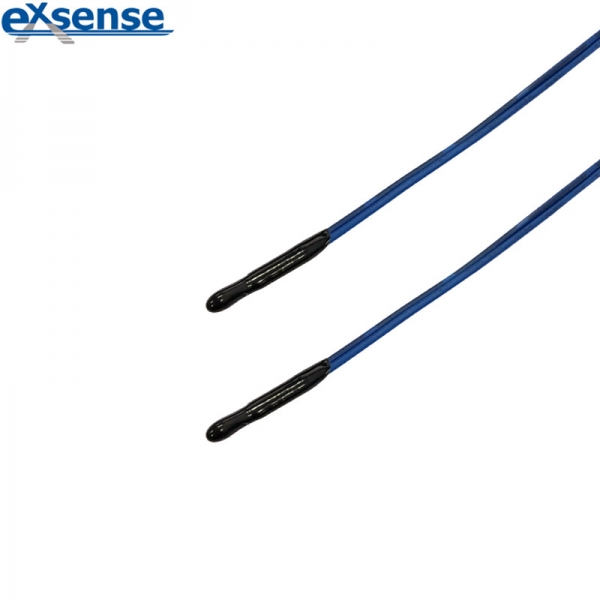

Smart home series NTC temperature sensor, NTC thermistor can be used in the oven, microwave oven and other
intelligent home, NTC temperature sensor has high precision, high temperature resistance, water resistance,
rapid response, high reliability and other characteristics
| Product Model | TS503F25C3950FA-EL590B-P26PL |
| Resistance Specification | R25=50KΩ±1% B(25/50)=3950K±1% |
| Rated Power | ≤10mW |
| Operate temperature rang | -30℃～105℃ |
| Dissipation factor |
2.0mW/℃ (in still air) |
