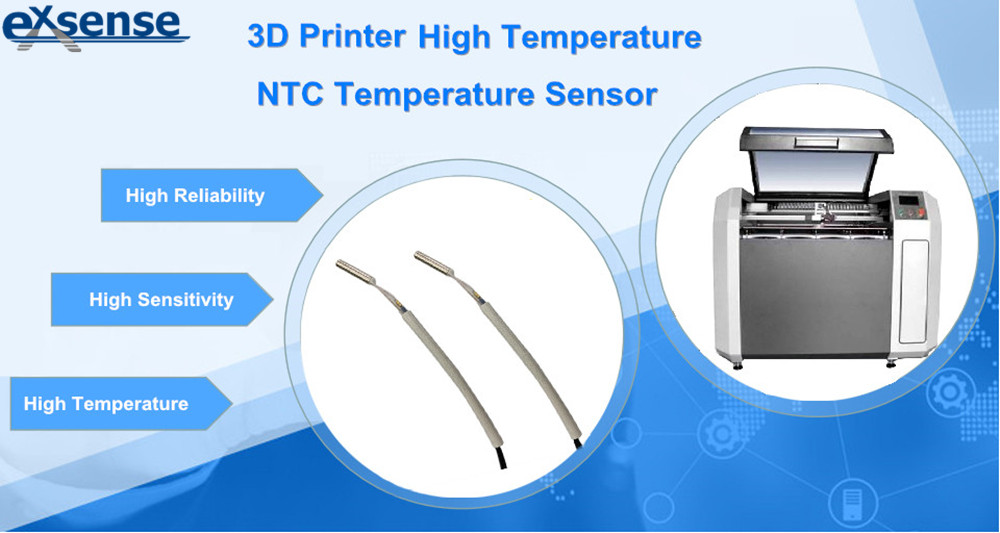

3D Printer High Temperature NTC Temperature Sensor

3D Printers are widely used in medical, automotive, industrial manufacturing and other industries.

3D Printer can mold different types of molds, so high temperature resistance is required. For this purpose, a built-in NTC Temperature Sensor is needed to monitor the temperature.

This 3D Printer NTC temperature sensor is using Glass Sealing Thermistor, the withstand temperature temperature can be 350 degrees, and it has superior sealing performance, small size, light, and high reliability. In additional, this 3D Printer NTC temperature sensor adopts a 304 stainless steel housing, the double-layer sealing process makes the product with strong bending resistance and good stability.

Below is the characteristic of our 3D printer temperature sensor：

1. Resistance ：R25=100KΩ±1%，B（25/50）=3950K±1%

2. Tube: Teflon Heat Shrink Tube

3. Housing Diameter：φ3×15mm

4. Temperature Range：-30-250℃

5. Wire：UL10362#26AWG black

Exsense Electronics Technology Co., Ltd is a NTC temperature sensor manufacturer with high sensitivity and high precision (up to 0.1%±). Our company also set up an independent R & D part, which can customize high quality temperature sensor according to the customer‘s environment.
