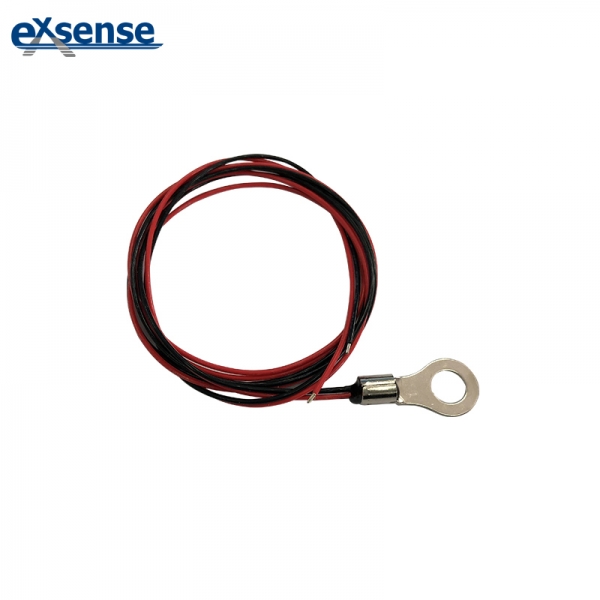

Product Model

TS103F25C3435FBIQ-NL1020A

Resistance Specification

 R25=10KΩ±1% B(25/85)=3435±1%

Response Time

≤3S

Temperature Range

-30-200℃

Housing size

brass 8.4*8.5*15

Wire material

UL1332#22AWG

Cable length

1049.8mm

Dissipation factor

Ta=25±0.5℃ about 2mW/℃

If all the parameters are not suitable for you. We can customize

2.252KΩ

EQ

5KΩ

IM

5KΩ

IM

10KΩ

IQ

10KΩ

EQ

10KΩ

EQ

50KΩ

EQ

100KΩ

GI

100KΩ

GI

B 25/50

3936A

3270A

3950A

3383A

3913A

3950A

3950A

3950A

4100AI

B 25/85

3950B

3418B

3981B

3435B

3977B

4017B

4050B

3997B

4149BI

-40

76.757

89.527

166.488

205.516

284.362

299.347

1668.539

3263.032

3724.780

-35

55.198

67.552

120.216

154.902

207.765

218.546

1208.617

2365.035

2666.911

-30

40.169

51.596

87.803

117.957

153.558

161.297

884.941

1733.109

1931.390

-25

29.562

39.864

64.823

90.693

114.728

120.266

654.531

1283.211

1413.792

-20

21.985

31.133

48.343

70.366

86.594

90.537

488.738

959.375

1045.392

-15

16.504

24.894

36.348

54.994

66.328

69.111

367.390

723.658

780.142

-10

12.508

20.020

27.587

43.343

51.191

53.134

278.692

550.628

587.479

-5

9.565

16.189

21.123

34.433

39.793

41.128

213.231

422.427

446.184

0

7.377

13.159

16.310

27.561

31.143

32.038

164.474

326.601

341.615

5

5.730

10.724

12.688

22.220

24.537

25.056

127.638

253.987

263.138

10

4.487

8.791

9.947

18.034

19.446

19.729

99.859

199.056

204.329

15

3.540

7.246

7.855

14.729

15.498

15.636

78.728

157.158

159.879

20

2.814

6.004

6.247

12.102

12.418

12.468

62.524

124.948

126.009

25

2.252

5.000

5.000

10.000

10.000

10.000

50.000

100.000

100.000

30

1.814

4.183

4.027

8.308

8.092

8.065

40.249

80.540

79.880

35

1.471

3.516

3.263

6.938

6.577

6.539

32.603

65.256

64.207

40

1.199

2.968

2.659

5.822

5.370

5.328

26.568

53.176

51.916

45

0.984

2.515

2.179

4.909

4.402

4.363

21.773

43.568

42.215

50

0.811

2.140

1.794

4.157

3.623

3.588

17.941

35.882

34.512

55

0.673

1.822

1.487

3.537

3.004

2.969

14.827

29.724

28.386

60

0.562

1.555

1.239

3.021

2.502

2.469

12.306

24.746

23.468

65

0.471

1.331

1.037

2.591

2.093

2.062

10.256

20.700

19.498

70

0.397

1.141

0.873

2.231

1.759

1.729

8.581

17.395

16.277

75

0.336

0.981

0.738

1.928

1.484

1.456

7.206

14.681

13.649

80

0.286

0.845

0.626

1.671

1.257

1.231

6.074

12.442

11.496

85

0.245

0.733

0.534

1.451

1.070

1.047

5.139

10.582

9.716

90

0.210

0.637

0.457

1.264

0.915

0.893

4.362

9.033

8.245

95

0.181

0.555

0.393

1.104

0.785

0.765

3.715

7.739

7.022

100

0.157

0.484

0.339

0.967

0.676

0.658

3.174

6.653

6.002

105

0.136

0.424

0.294

0.849

0.584

0.568

2.720

5.738

5.148

110

0.119

0.372

0.255

0.747

0.507

0.491

2.337

4.965

4.430

115

0.104

0.327

0.223

0.659

0.441

0.427

2.014

4.310

3.825

120

0.091

0.288

0.195

0.583

0.384

0.372

1.740

3.752

3.312

125

0.080

0.254

0.171

0.517

0.336

0.325

1.507

3.275

2.877

130

0.071

0.225

0.151

0.459

0.295

0.284

1.308

2.867

2.506

135

0.063

0.199

0.133

0.409

0.260

0.250

1.138

2.517

2.188

140

0.056

0.176

0.118

0.365

0.229

0.220

0.993

2.215

1.916

145

0.050

0.157

0.104

0.326

0.202

0.194

0.868

1.953

1.682

150

0.044

0.140

0.093

0.292

0.179

0.172

0.760

1.727

1.480
