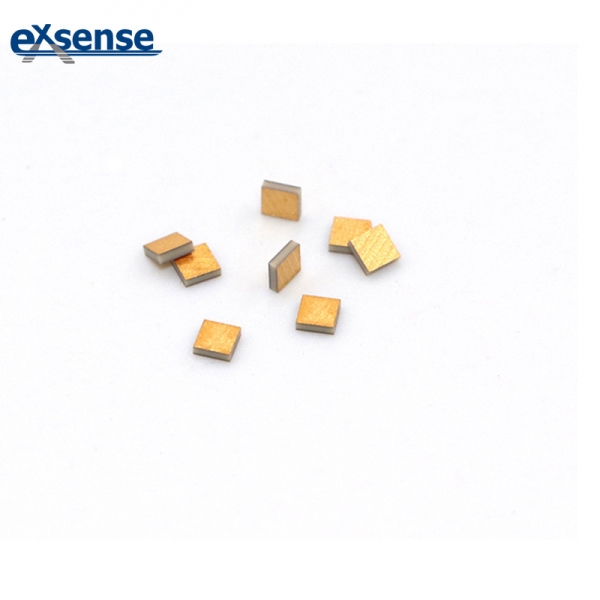

Gold electrode ntc thermistor is the newest development in chip NTC thermistors. The miniature package is designed for hybrid applications where bonding wire or Au/Sn solder is used as the attachment method. The terminations on the top and bottom of the thermistor are gold (Au) plated for the ultimate in hybrid designs and construction.
|
Product Model |
DT103F3950AGBM |
|
Resistance Specification |
R25=10KΩ±1% B(25/85)=3435K±1% |
|
Response Time |
≤3S |
|
Temperature Range |
0-250℃ |
|
Housing Size |
0.6×0.6×0.4mm |
1. Boding(infrared thermal reactor, IGBT, thermal printer head, interrated module,
2. Semiconductor module, power mould etc, temperature sensor
|
|
2.252KΩ EQ |
5KΩ IM |
5KΩ IM |
10KΩ IQ |
10KΩ EQ |
10KΩ EQ |
50KΩ EQ |
100KΩ GI |
100KΩ GI |
|
B 25/50 |
3936A |
3270A |
3950A |
3383A |
3913A |
3950A |
3950A |
3950A |
4100AI |
|
B 25/85 |
3950B |
3418B |
3981B |
3435B |
3977B |
4017B |
4050B |
3997B |
4149BI |
|
-40 |
76.757 |
89.527 |
166.488 |
205.516 |
284.362 |
299.347 |
1668.539 |
3263.032 |
3724.780 |
|
-35 |
55.198 |
67.552 |
120.216 |
154.902 |
207.765 |
218.546 |
1208.617 |
2365.035 |
2666.911 |
|
-30 |
40.169 |
51.596 |
87.803 |
117.957 |
153.558 |
161.297 |
884.941 |
1733.109 |
1931.390 |
|
-25 |
29.562 |
39.864 |
64.823 |
90.693 |
114.728 |
120.266 |
654.531 |
1283.211 |
1413.792 |
|
-20 |
21.985 |
31.133 |
48.343 |
70.366 |
86.594 |
90.537 |
488.738 |
959.375 |
1045.392 |
|
-15 |
16.504 |
24.894 |
36.348 |
54.994 |
66.328 |
69.111 |
367.390 |
723.658 |
780.142 |
|
-10 |
12.508 |
20.020 |
27.587 |
43.343 |
51.191 |
53.134 |
278.692 |
550.628 |
587.479 |
|
-5 |
9.565 |
16.189 |
21.123 |
34.433 |
39.793 |
41.128 |
213.231 |
422.427 |
446.184 |
|
0 |
7.377 |
13.159 |
16.310 |
27.561 |
31.143 |
32.038 |
164.474 |
326.601 |
341.615 |
|
5 |
5.730 |
10.724 |
12.688 |
22.220 |
24.537 |
25.056 |
127.638 |
253.987 |
263.138 |
|
10 |
4.487 |
8.791 |
9.947 |
18.034 |
19.446 |
19.729 |
99.859 |
199.056 |
204.329 |
|
15 |
3.540 |
7.246 |
7.855 |
14.729 |
15.498 |
15.636 |
78.728 |
157.158 |
159.879 |
|
20 |
2.814 |
6.004 |
6.247 |
12.102 |
12.418 |
12.468 |
62.524 |
124.948 |
126.009 |
|
25 |
2.252 |
5.000 |
5.000 |
10.000 |
10.000 |
10.000 |
50.000 |
100.000 |
100.000 |
|
30 |
1.814 |
4.183 |
4.027 |
8.308 |
8.092 |
8.065 |
40.249 |
80.540 |
79.880 |
|
35 |
1.471 |
3.516 |
3.263 |
6.938 |
6.577 |
6.539 |
32.603 |
65.256 |
64.207 |
|
40 |
1.199 |
2.968 |
2.659 |
5.822 |
5.370 |
5.328 |
26.568 |
53.176 |
51.916 |
|
45 |
0.984 |
2.515 |
2.179 |
4.909 |
4.402 |
4.363 |
21.773 |
43.568 |
42.215 |
|
50 |
0.811 |
2.140 |
1.794 |
4.157 |
3.623 |
3.588 |
17.941 |
35.882 |
34.512 |
|
55 |
0.673 |
1.822 |
1.487 |
3.537 |
3.004 |
2.969 |
14.827 |
29.724 |
28.386 |
|
60 |
0.562 |
1.555 |
1.239 |
3.021 |
2.502 |
2.469 |
12.306 |
24.746 |
23.468 |
|
65 |
0.471 |
1.331 |
1.037 |
2.591 |
2.093 |
2.062 |
10.256 |
20.700 |
19.498 |
|
70 |
0.397 |
1.141 |
0.873 |
2.231 |
1.759 |
1.729 |
8.581 |
17.395 |
16.277 |
|
75 |
0.336 |
0.981 |
0.738 |
1.928 |
1.484 |
1.456 |
7.206 |
14.681 |
13.649 |
|
80 |
0.286 |
0.845 |
0.626 |
1.671 |
1.257 |
1.231 |
6.074 |
12.442 |
11.496 |
|
85 |
0.245 |
0.733 |
0.534 |
1.451 |
1.070 |
1.047 |
5.139 |
10.582 |
9.716 |
|
90 |
0.210 |
0.637 |
0.457 |
1.264 |
0.915 |
0.893 |
4.362 |
9.033 |
8.245 |
|
95 |
0.181 |
0.555 |
0.393 |
1.104 |
0.785 |
0.765 |
3.715 |
7.739 |
7.022 |
|
100 |
0.157 |
0.484 |
0.339 |
0.967 |
0.676 |
0.658 |
3.174 |
6.653 |
6.002 |
|
105 |
0.136 |
0.424 |
0.294 |
0.849 |
0.584 |
0.568 |
2.720 |
5.738 |
5.148 |
|
110 |
0.119 |
0.372 |
0.255 |
0.747 |
0.507 |
0.491 |
2.337 |
4.965 |
4.430 |
|
115 |
0.104 |
0.327 |
0.223 |
0.659 |
0.441 |
0.427 |
2.014 |
4.310 |
3.825 |
|
120 |
0.091 |
0.288 |
0.195 |
0.583 |
0.384 |
0.372 |
1.740 |
3.752 |
3.312 |
|
125 |
0.080 |
0.254 |
0.171 |
0.517 |
0.336 |
0.325 |
1.507 |
3.275 |
2.877 |
|
130 |
0.071 |
0.225 |
0.151 |
0.459 |
0.295 |
0.284 |
1.308 |
2.867 |
2.506 |
|
135 |
0.063 |
0.199 |
0.133 |
0.409 |
0.260 |
0.250 |
1.138 |
2.517 |
2.188 |
|
140 |
0.056 |
0.176 |
0.118 |
0.365 |
0.229 |
0.220 |
0.993 |
2.215 |
1.916 |
|
145 |
0.050 |
0.157 |
0.104 |
0.326 |
0.202 |
0.194 |
0.868 |
1.953 |
1.682 |
|
150 |
0.044 |
0.140 |
0.093 |
0.292 |
0.179 |
0.172 |
0.760 |
1.727 |
1.480 |
